Drum module AT-85 (PCB & Panel)
Set for the production of 8-bit drum eurorack modules VITA SYNTHS AT-85.

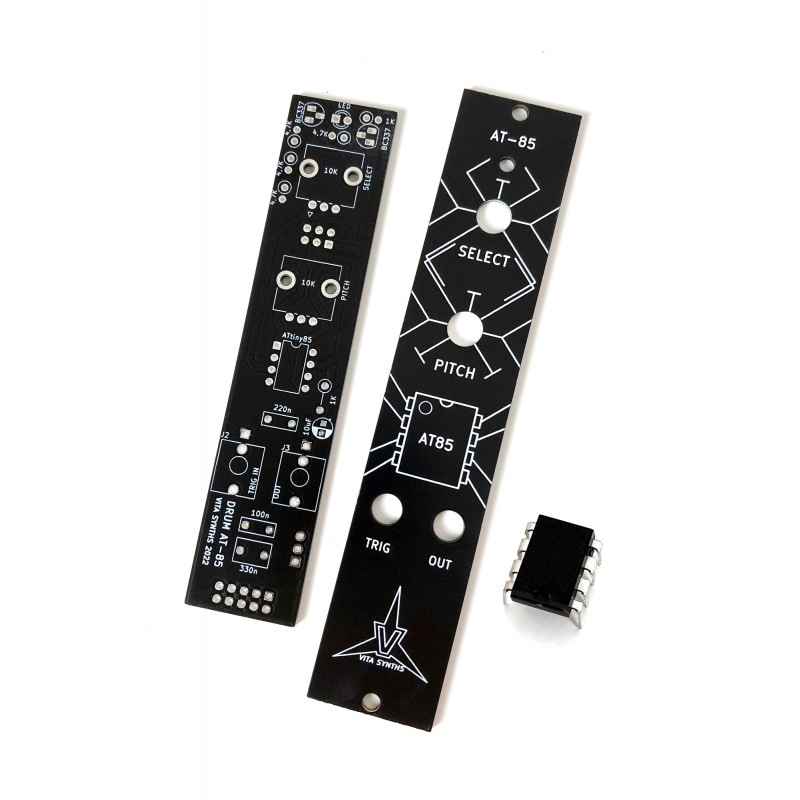

Set includes: frfont panel, PCB and programmed chip for the production of 8-bit drum eurorack modules VITA SYNTHS AT-85.
Other components not included in this kit:
- 1x 330n L7.0mm_W4.5mm_P5.00mm Unpolarized capacitor
- 2x 100n L7.0mm_W2.5mm_P5.00mm Unpolarized capacitor
- 1x 10uF Radial_D4.0mm_P2.00mm Polarized capacitor
- 1x LED LED_D3.0mm Light emitting diode
- 1x PWR Connector_IDC-Header_or_Pin_Bar_2x05_P2.54mm_Vertical
- 1x TRIG IN Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical
- 1x OUT Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical
- 1x ISP Pin_Bar_2x03_P2.54mm_Vertical
- 2x BC337 NPN Transistor, TO-92
- 4x 4k7 Resistor_L6.3mm_D2.5mm_P2.54mm
- 1x 1k Resistor_L6.3mm_D2.5mm_P5.08mm
- 1x 1k Resistor_L6.3mm_D2.5mm_P2.54mm
- 1x SELECT Potentiometer_RK09L_Single_Vertical
- 1x PITCH Potentiometer_RK09L_Single_Vertical
- 1x L7805 Regulator_Linear_TO-220-3_Vertical
- 1x Package DIP-8_W7.62mm for MCU_Microchip_ATtiny85-20PU
Parametry
- Height
- 128,3 mm
- Width
- 25,4 mm
- Depth
- 43 mm
- Materials
- PCB, metal, electronics
- Power supply
- +12V
- Color
- Black & White
Set for the production of 8-bit drum eurorack modules VITA SYNTHS AT-85.
